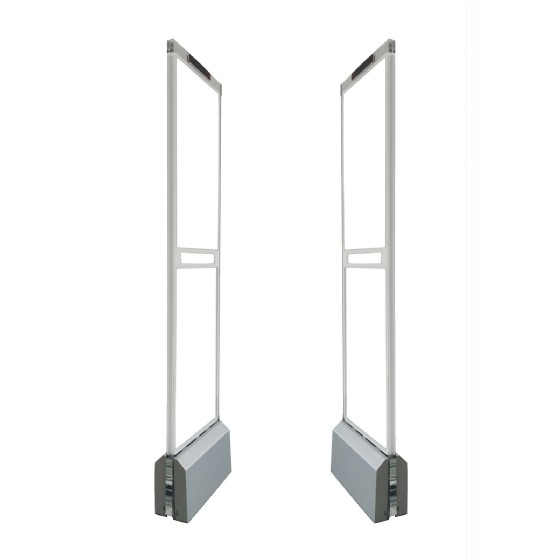

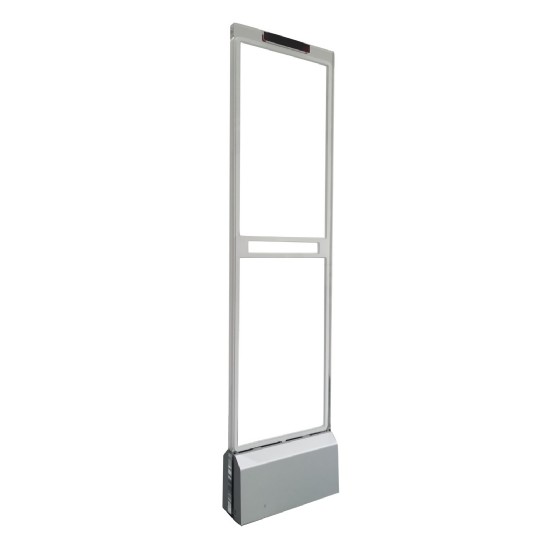

The modern open design of the SDAM-UPX40does not affect aesthetic
decoration of the store. Its brief design can be completely adapted to all
different brands or stores which enables a seamless integration into any
sales concept.
SDAM-UPX40are equipped with new electronic mother boards that
gather valuable and latest technology and offer integration possibilities
with other security devices.
SDAM-UPX40 is made of reliable texture and rigorous assembly. The
brand-new acrylic frame is extremely clear and bright.
Retailer Values
//Equipped with Sciendy’s patented OID (Orientation Independent
Detection) technology; tags are detected regardless of their position (front/
flat/side/angled)
//Flexible design options: cover color//Audio and visual alarm
signalization
//Real-time insight and control with in-store and organization-wide
dashboards
//Customizable alarm tones and LED alarm light identify unique events to
help reduce shrink
//Remote alarm option alerts staff of alarm events anywhere in store
//Easy application to help improve store operations
Specifications
Frequency........................................................58KHz
Height...........................................................1560mm
Width.................................400mm; 390mm at base
Thickness............................25mm; 130mm at base
Weight..............................................................39.2kg
Material.....Acrylic Panel/Aluminum alloy Covers
Electrical
Power Adaptor .....................................100-240V~AC/50-60Hz
Operating Distance ....................................................Up to1.8m
Operating Temperature.....................................................0-50℃
Receiver Technology ............................Digital Signal Processor
Alarm Light ........................Blue normally on; red for alarming
Alarm Sound .........................................................Buzzer, ≥105db
Detection Characteristics......................................Moving Fields
